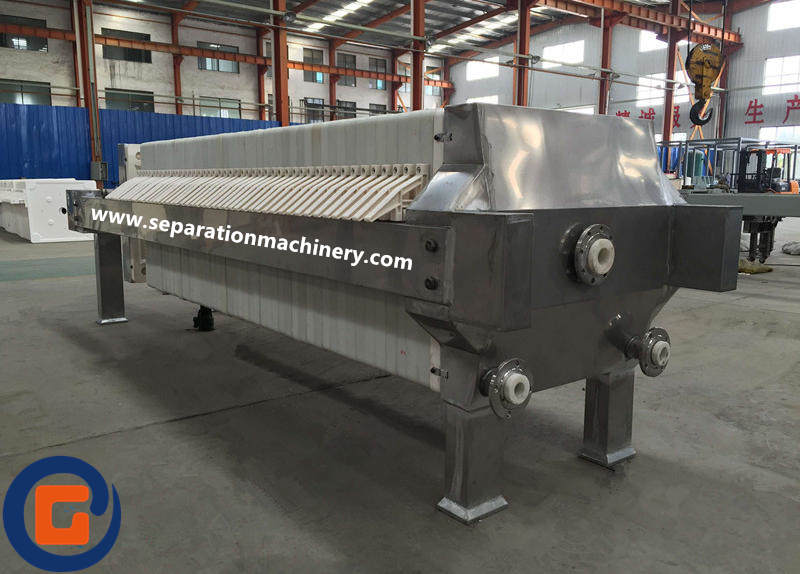

Plate Frame Coconut Oil Mustard Oil Edible Frying Oil Filter Press For Industry

Introduction of Plate Frame Filter Press

Plate Frame filter press is one kind effective filtration equipment for solid-liquids separation. compared with other solid-liquid separation equipment, the filter cake has higher solidity rate and good separation effect. Filter press structure is simple, it has the characteristics of large filtering capacity and have the filtering area from small to big (filtering area from 1 m2 to 1000 m2), high operating pressure, low filter cake moisture , applicable to a variety of materials, suitable for intermittent operation.

Working principle

The filtrate passes through the filter cloth and flows along the groove of the filter plate to the lower outlet hole passage, and is discharged centrally. After the filtration is finished, the filter press is opened to remove the filter cake (the filter cake is stored between the adjacent two filter plates), and the filter cloth is cleaned. Re-tighten the plate filter to start the next working cycle. This continuously cycles through the work to achieve the purpose of solid-liquid separation.

Application scope of Plate Frame Filter Press Machine

Plate Frame Filter Press are widely used for the solid-liquid separation process in the industrial of mineral processing, petroleum, chemical industry, dyestuff, metallurgy, medicine, food, coal and carbon, inorganic salts, alcohol, light industry, textiles, environmental protection, energy and so on.

Hydraulic Filter Press Technical Data
