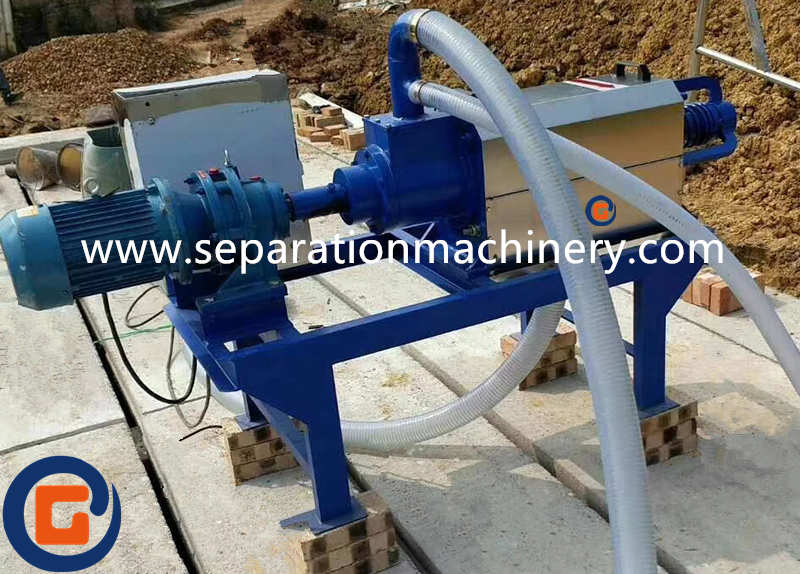

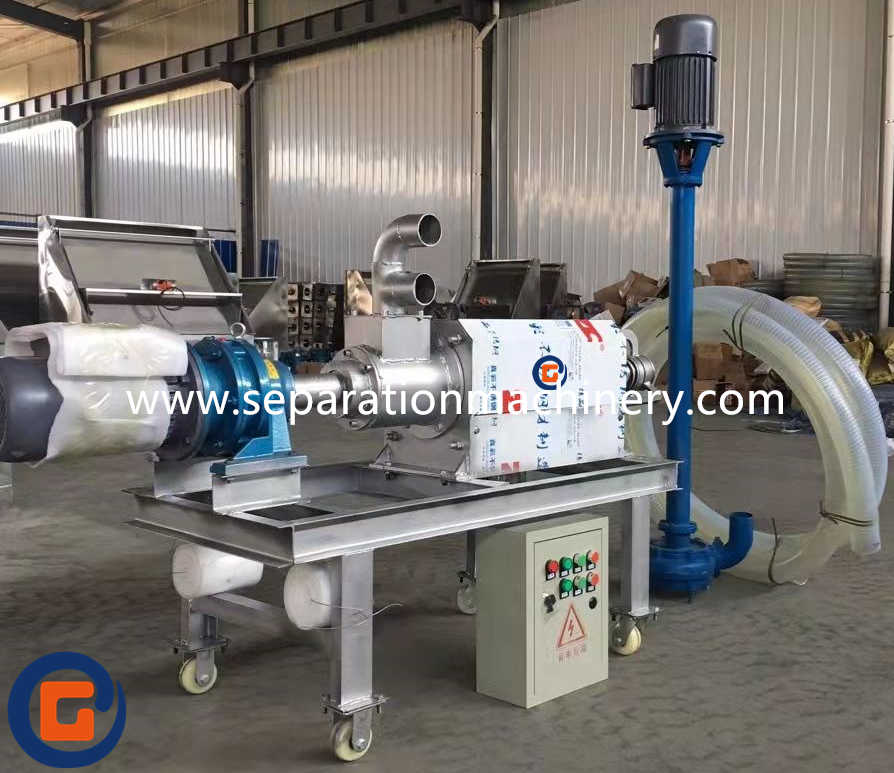

Dairy Farm Poultry Manure Cow Dung Dewatering Machine Solid Liquid Separator
  • Dairy Farm Poultry Manure Cow Dung Dewatering Machine Solid Liquid Separator
Dairy Farm Poultry Manure Cow Dung Dewatering Machine Solid Liquid Separator Dairy Farm Poultry Manure Cow Dung Dewatering Machine Solid Liquid Separator

Dairy Farm Poultry Manure Cow Dung Dewatering Machine Solid Liquid Separator

Animal Manure dewatering screw press machine solid liquid separator used to reduce the water content of animal dung, acid-sludge, medicine dregs, kitchen rubbish, and many other dregs. The solid content in the raw material can be 40-50%, and the moisture of final product is about 20-30%.


Share
Description

Product Description

Animal Manure dewatering screw press machine solid liquid separator used to reduce the water content of animal dung, acid-sludge, medicine dregs, kitchen rubbish, and many other dregs. The solid content in the raw material can be 40-50%, and the moisture of final product is about 20-30%.

Dairy Farm Poultry Manure Cow Dung Dewatering Machine Solid Liquid Separator

Working Principle

The principle of solid-liquid separator is spiral extrusion solid-liquid separation technology. The main components are: body, screen, extrusion and stranding, reduction motor, unloading device and other components. After the cutting feed pump pumps the mixture to the solid-liquid separator through the pipeline, the separator starts, and the mixture is gradually pushed forward to the front of the body by squeezing the stringer. At the same time, the pressure of the leading edge is constantly increased, forcing the water in the material to extrude the screen and flow out of the drain pipe. The work of the extruder is continuous, the material is continuously pumped into the body, the leading edge of the pressure is increasing, when to a certain extent, the discharge port will be opened, extrusion port, to achieve the purpose of extrusion. In order to grasp the speed and water content of the discharge, the control device in front of the main engine can be adjusted to achieve a satisfactory and appropriate discharge state.

Dairy Farm Poultry Manure Cow Dung Dewatering Machine Solid Liquid Separator

Technical Parameter

ModelG-180G-200G-230G-300
Raw manure capacity15 m3/h23 m3/h26 m3/h30 m3/h
Dry manure output capacity3-4 m3/h6-8 m3/h8-11 m3/h13-15 m3/h
Machine power5.5 kw5.5 kw5.5 kw7.5 kw
Feed pump power4 kw4 kw4 kw4 kw
Inlet80 mm80 mm80 mm80 mm
Overflow80 mm80 mm80 mm80 mm
Drain100 mm100 mm100 mm100 mm
Sieve diameter180 mm200 mm230 mm300 mm
Feed hose10 m10 m10 m10 m
Dimension (L*W*H)1800x700x1200 mm1900x700x1250 mm2000x700x1300 mm2200x700x1400 mm
Weight260 kg280 kg320 kg360 kg
