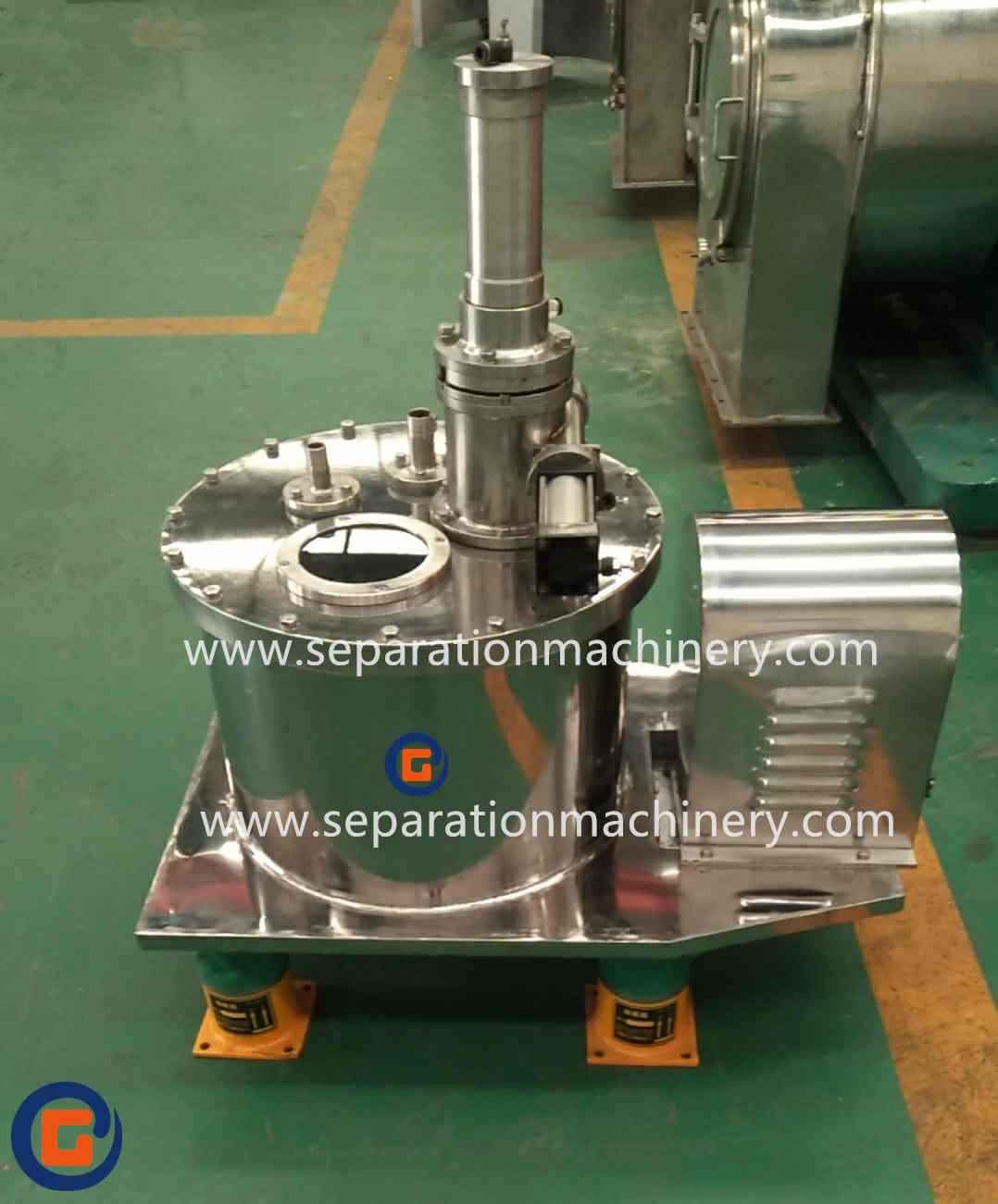

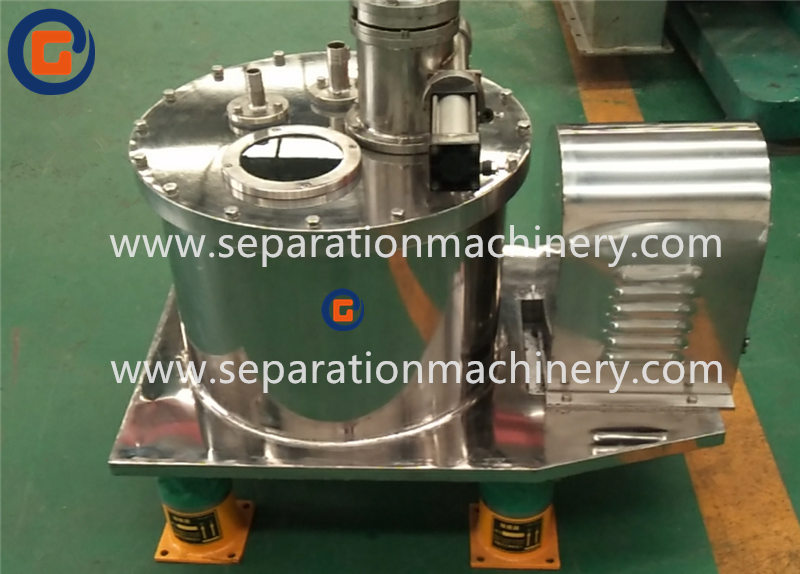

Small Scale High Speed Automatic Scraper Bottom Discharge Filter Centrifuge PGZ450

Product Description:

The PGZ450 Is The Smallest Model Of Fully Automatic Scraper Discharge Centrifuge. Applied for fine and medium grain solid particle suspension separation, the solid particle could be granule, crystal or fiber type. Especially for the separation which the material has high viscosity, fine grain, poisonous and inflammable. Widely used in the area of chemical, pharmaceutical, food, light industry, environment protection etc.

Operating principle:

The automatic bottom discharge scraper centrifuge is vertical fully-automatic filtration centrifuge. The motor drives the basket to rotate at high speed through the belt, and under the control of pre-written program, the material to be separated is fed into the basket through the feed system. After the material is filtered through the filtration medium (filter cloth/screen) under the action of centrifugal force, the liquid phase discharges out of the centrifuge through the liquid pipeline, and the solid phase is retained in the basket. A material detection device is used to detected material filling position in real-time manner, and when the solid cake deposited in the basket reaches the specified holding capacity of the centrifuge, feeding stops. Then wash and dry the solid cake. After the solid cake meets requirements for knock-out, the centrifuge reduces to the scraping rate, under the hydraulic (pneumatic) control, the scraper device removes the solid cake, and then the cake is discharged at bottom outlet of the centrifuge.

Application:

Apply to separate the suspended liquid, the solid can be powder, granular, crystal and fibrous. and the diameter of the solid larger than 0.01 mm. it also applies to dewater the work pieces like yarn, textiles and so on.

1.Chemical Industry: gypsum, thiamin, salt, ferric sulfate, boric acid, borax, rubber additive, dye, and other chemical products;

2.Food industry: kitchen salt, sodium glutamate, food additive, Chemical seasonings, sugar;

3.Pharmaceutical: Extraction of vitamin, biotic, traditional Chinese medicine and other various drugs;

4.Mine and Metallurgy: Copper, zinc, minerals, and metal refining;

5. Environmental Protection: with acid discharge, pure water sludge and sewage sludge, etc.

Technical Parameters:
