The stainless steel rotary vibrating sieve is aimed at common additive screening, yeast powder screening, coffee powder screening, salt screening, flour screening, chili powder screening, soy milk screening, soy sauce screening, etc., which can effectively improve the screening quality , To improve screening efficiency, is the first choice of screening machinery for food manufacturers.

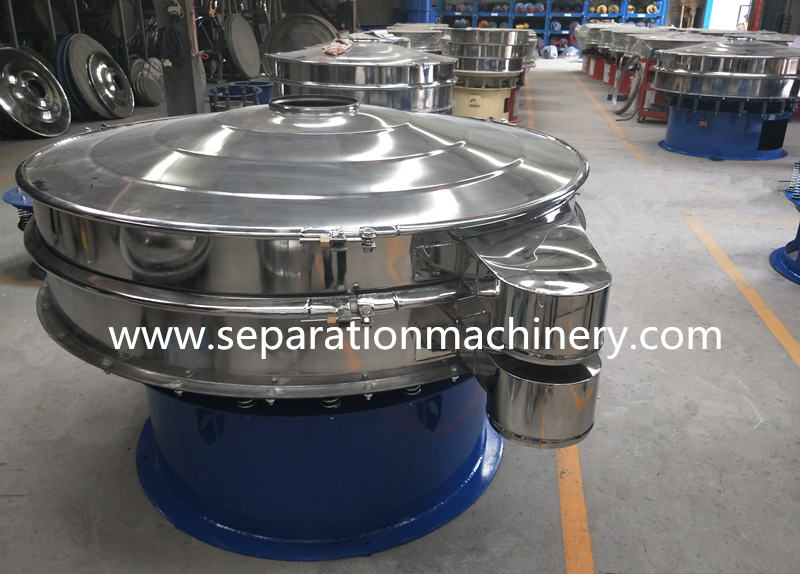

Stainless steel rotary vibrating sieve introduction:
The stainless steel rotary vibrating sieve is aimed at common additive screening, yeast powder screening, coffee powder screening, salt screening, flour screening, chili powder screening, soy milk screening, soy sauce screening, etc., which can effectively improve the screening quality , To improve screening efficiency, is the first choice of screening machinery for food manufacturers.
Structure And Working principle:
The fundamental principle of Industrial rotary vibrating screen sieve is that the eccentric hammers installed on the top and bottom ends of motor changes the rotation motion of motor to horizontal, vertical and inclined three-dimensional motions, and then passes this motion to screen surface, achieving the purpose of classification, filtering and removal of impurities.
Application industries of rotary vibrating separator:
Chemical Industry: colophony, dope, industry leechdom, cosmetic, paint
Grinding materials & china industry: alumina, quartz, slurry, kaolin, carborundum, sprayer dust.
Food Industry: sugar, rice powder, milk powder, soybean milk, angel cake, sauce, juice.
Paper Making Industry: dope, white soil slurry, black and white liquid, disposed liquid, paper-making liquid and waste water recycling.
Metallurgy& Mining Industry: aluminum powder, ceruse, copper powder, ore alloy powder, welding rod powder, dioxide manganese, electrolyze copper powder, electromagnetic material, rubbing powder, fire-proof material, kaolin, lime, heavy calcium carbonate.
Other industries: waste oil, wastewater, dyeing and finishing wastewater, papermaking, additives, activated carbon, etc.
Technical Parameters:
| Model | Screen Diameter (mm) | Screen Area (m2) | ScreenDecks | Power(KW) | Maximum size input |
| GX-400 | 350 | 0.10 | 1-5 | 0.18 | 20mm |
| GX-600 | 550 | 0.24 | 1-5 | 0.25 | 20mm |
| GX-800 | 760 | 0.44 | 1-5 | 0.5 | 30mm |
| GX-1000 | 950 | 0.71 | 1-5 | 0.75 | 30mm |
| GX-1200 | 1150 | 1.03 | 1-5 | 2.2 | 30mm |
| GX-1500 | 1430 | 1.65 | 1-5 | 2.2 | 50mm |
| GX-1800 | 1730 | 2.35 | 1-3 | 2.5 | 50mm |
| GX-2000 | 1910 | 2.98 | 1-3 | 2.5 | 60mm |
Q: What information do I need to provide for getting an accurate quotation for Industrial rotary vibrating screen sieve?
1. Material's name, bulk density, and water content?
2. Capacity you required per hour? (kg/h)
3. What's the purpose for our machine? Filtering, removing impurities or classification?
4. How many layers do you need?
5. The mesh size for each layer you need?
6. Voltage and frequency?
