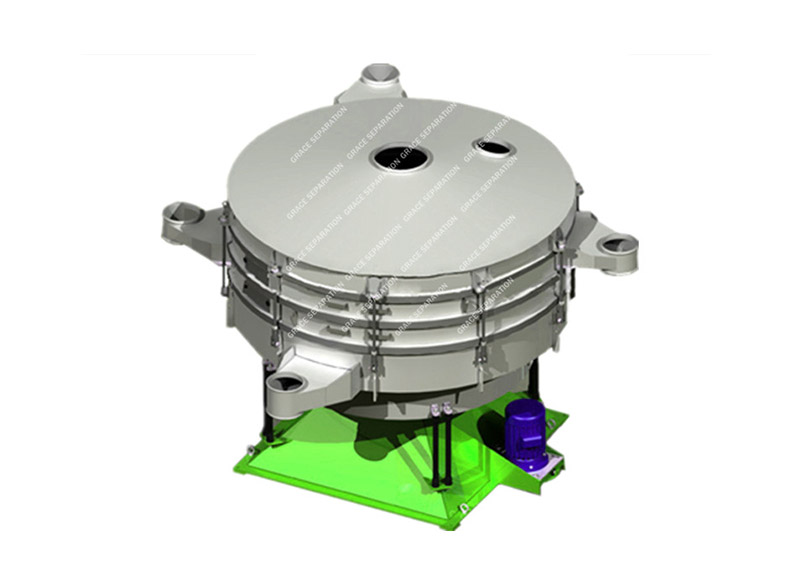

TSM Series Germany Technology Tumbler Vibrating Separator is specially designed to meet clients whoever require high production capacity, high-precision screening.
Introduction:
TSM Series Germany Technology Tumbler Vibrating Separator is specially designed to meet clients whoever require high production capacity, high-precision screening.
The special structure produces horizontal and throwing three-dimensional tumbling motion. Its principle is similar to manual sieving with hands.
Tumbler Vibrating Separator can reach above 98% screening purity, higher efficiency, 5-10 times longer screen life. It can meet the screening requirements of all fine and ultra-fine powder.
Application Industries:
Tumbler can be used for sieving find powder or granules such as, salt, plastic granules, starch, sugar, graphite, rubber powder, chemical powder etc.
Technical Parameters:
| Model | TSM1000 | TSM1200 | TSM1600 | TSM1800 | TSM2000 | TSM2600 |
| Diameter | 1000mm | 1200mm | 1600mm | 1800mm | 2000mm | 2600mm |
| Mesh area | 0.71 m2 | 1.11 m2 | 1.83 m2 | 2.46 m2 | 3.05 m2 | 5.31 m2 |
| Mesh Size | 0.028mm-12mm | |||||
| Layer(s) | 1-3 | 1-5 | ||||
| Power(KW) | 1.5 | 1.5 | 3.0 | 4.0 | 4.0 | 5.5 |
| Net Cleaning | Bouncing ball, Ultrasonic device, Rolling brush | |||||
