Gravity Roller Conveyor For Warehouse System
  • Gravity Roller Conveyor For Warehouse System
  • Gravity Roller Conveyor For Warehouse System
  • Gravity Roller Conveyor For Warehouse System
Gravity Roller Conveyor For Warehouse System Gravity Roller Conveyor For Warehouse SystemGravity Roller Conveyor For Warehouse SystemGravity Roller Conveyor For Warehouse System

Gravity Roller Conveyor For Warehouse System

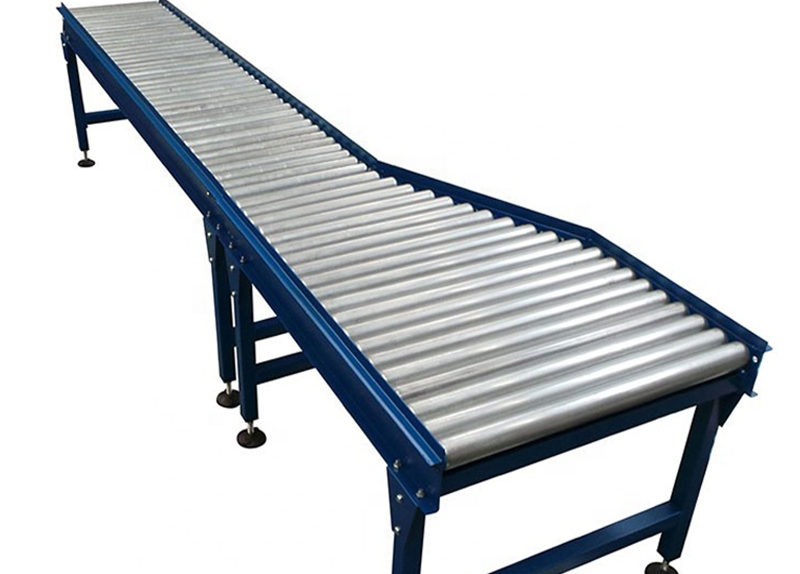

The gravity roller conveyor is suitable for the conveyance of articles with a flat bottom. It is widely used in logistics, package etc. industries.

Share
Description

Products Production

Roller conveyor is easy to interface between the filter, can be used a number of drum lines and other transport equipment or plane composition complex logistics delivery system and shunt and interflow system, needed to complete the process in many aspects. Use the product to put the drum to realize the material accumulation conveyor, roller conveyor has the advantages of simple structure, high reliability, convenient use and maintenance, power roller lines considering the tensile strength of the chain, the longest length of single is generally not more than 10 meters.

Technical Parameters

TypeRollerFrameLoad Bearing(Kg/m)
DiameterLengthIntervalSizeLength
GR-25Φ25100-60030,40,5040*20*21000-300030
GR-38Φ38100-60050,75,10060*30*2.51000-3000300-80
GR-50Φ50150-100075,100,12060*30*31000-3000500-100
GR-60Φ60150-100075,100,12090*30*31000-3000600-150
GR-76Φ76150-1000100,150120*30*31000-30001000-500
Products Advantages

Gravity Roller Conveyor For Warehouse System

Gravity Roller Conveyor For Warehouse System
