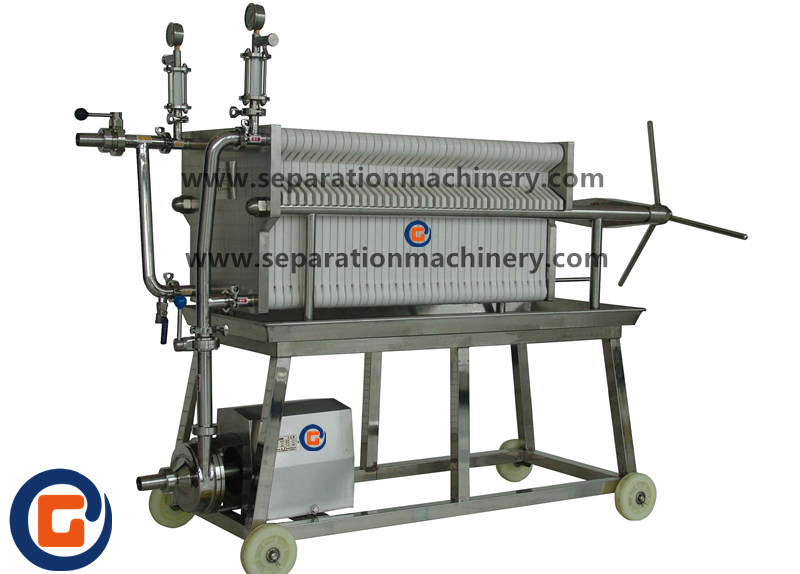

Stainless Steel Plate Frame Filter Press Used For Gelatin And Blood Products Filtration
  • Stainless Steel Plate Frame Filter Press Used For Gelatin And Blood Products Filtration
Stainless Steel Plate Frame Filter Press Used For Gelatin And Blood Products Filtration Stainless Steel Plate Frame Filter Press Used For Gelatin And Blood Products Filtration

Stainless Steel Plate Frame Filter Press Used For Gelatin And Blood Products Filtration

This Stainless Steel Plate Frame Filter Press is used in the wine, beer, red wine, vodka, fruits wine, food, chemical and pharmaceutical fields. It can be used as a straight plate filter with cellulose sheets, or a double filtration kit to filter two grades.


Share
Description

Introduction

This Stainless Steel Plate Frame Filter Press is used in the wine, beer, red wine, vodka, fruits wine, food, chemical and pharmaceutical fields. It can be used as a straight plate filter with cellulose sheets, or a double filtration kit to filter two grades.

Stainless Steel Plate Frame Filter Press Used For Gelatin And Blood Products Filtration

Working Principle

Use a pump to transport the liquid ite into the inlet channel formed by the connection of the filter plate, the seal and the end plate, and then flow into the end plate and each fine filter frame. Due to the pressure difference before and after filtration, the filtrate can pass through the fine filter board and flow in. In the filter frame, under the action of interception, sieving and adsorption of the fine filter board, impurities such as bacteria or solid particles in the filtrate are separated, and the clarified liquid flows out from the outlet channel on the other side of the filter plate.

Stainless Steel Plate Frame Filter Press Used For Gelatin And Blood Products Filtration

Application

It is suitable for filtering various kinds of coarse and fine grades of medicinal liquor, liquor (beer, wine, liquor, rice wine, fruit wine, etc.), fruit juice beverage, syrup, vinegar, oil (edible oil, industrial oil), fine chemicals, electroplating water and other products.

Stainless Steel Plate Frame Filter Press Used For Gelatin And Blood Products Filtration

Technical Parameter

ModellayersFilter area(m²)Filter plateSize (mm)Water Flow(T/h)Feed Pump Power (kw)Dimensions(mm)
BASJL400-2152400*4001-21.51250*660*1400
BASJL400-3203400*4002-31.51500*660*1400
BASJL400-4304400*4003-41.51750*660*1400
BASJL400-6446400*4004-61.52100*660*1400
BASJL400-8.5628.5400*4006-82.22500*660*1400
BASJL400-9.5709.5400*4008-102.22700*660*1400
